Beecroft Homeowners’ Guide: Two Duplex/Subdivision Strategies That Actually Work

Why Beecroft is different

Large parts of Beecroft/Cheltenham are within a Heritage Conservation Area (HCA), where streetscape, garden settings and period character are protected under Hornsby’s planning controls. That means “context before yield” and landscape-first design almost always perform better in assessment.

At the same time, NSW’s Low & Mid-Rise Housing (LMR) Policy now permits dual occupancies state-wide in R2 zones and sets non-refusal standards (lot 450 m², width 12 m, height 9.5 m, FSR 0.65:1, 1 car space per dwelling; subdivision 225 m² & 6 m width per lot in R1/R2/R3). For Parramatta-side Beecroft, Council confirms these LMR thresholds now apply (down from the previous 600 m²/15 m under the LEP).

Strategy 1 — “One-House Look” Duplex or KDR (Heritage-conscious DA)

In one line: Design the pair to read as a single manor from the street, with canopy retained and garages visually recessive. It fits Beecroft’s HCA aims and gives consent authorities fewer reasons to push back.

How to execute

1. Single-dwelling presentation

   • One principal roof form and unified façade rhythm; party wall disguised.

   • Garages side-loaded or set back; landscaping leads the view, not doors.

2. Landscape and trees first

   • Map TPZs (tree protection zones) and keep driveways out of root plates.

   • Hornsby’s tree policy explicitly lists what is not a valid reason to remove a healthy tree (e.g., leaves, shade, views, solar access). Expect arborist evidence for any removal.

3. DA over CDC (usually)

   • Because of HCA + trees, most Beecroft sites go through DA with a Heritage Impact Statement & AQF-5 Arborist report. CDC may still suit limited non-heritage pockets or the Parramatta-side where heritage exclusions don’t apply, but feasibility should confirm the exact HCA and zoning first.

Before/After

Quick Spec Table

“We kept the façade reading as one house and wrapped the drive around a turpentine’s TPZ. Heritage support came on the first round.” — John F. - Owner, Welham St, Beecroft

Strategy 2 — Corner-Lot Subdivision (Tree-First Geometry)

In one line: Where you’ve got a wide corner block, split access across both streets, slide new lot lines around significant trees, and target Torrens only if the LMR width/area standards are met—otherwise go strata to keep the rhythm and canopy.

Why corner lots shine here

• Two short crossovers mean less driveway in root zones and a quieter streetscape—important in an HCA that values garden settings.

• LMR thresholds (450 m² / 12 m) are realistic on many older corners; where you fall short or are constrained by trees, strata is cleaner and still saleable.

Tree rules to respect (so you don’t redesign twice)

• Healthy trees can’t be removed just for leaves, shade, views or “too big”; Council expects evidence of risk/structural failure or serious damage, supported by an AQF-5 report.

• Some minor works and limited removals are exempt (e.g., dead trees; 10/50 rule near homes; certain small trees), but check the detailed list and distances before you act.

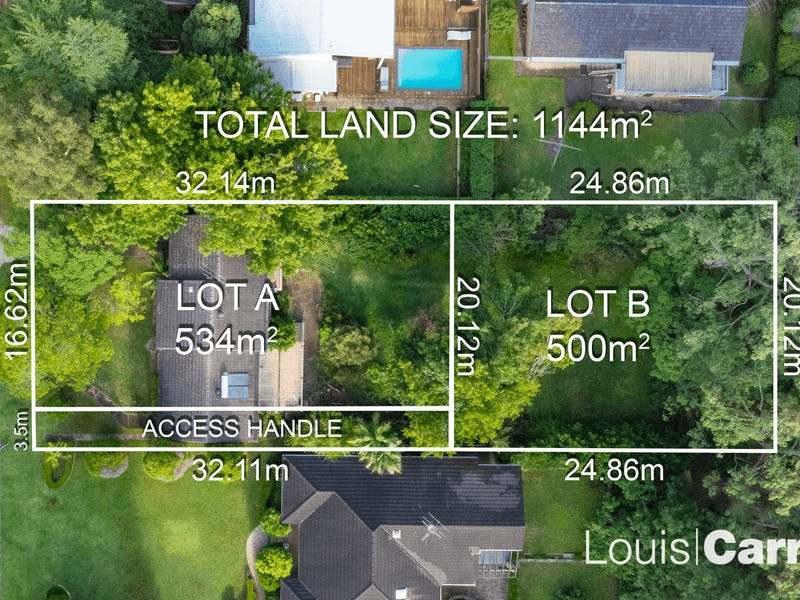

Subdivision Sketch

Beecroft Owner’s Workflow (so you don’t waste fees)

• Address check (5 min) → Confirm council (Hornsby or Parramatta), heritage layer, and overlays.

• LMR screening (10 min) → Do your width/area meet 450 m² / 12 m? (Parramatta-side confirms those thresholds).

• Tree mapping → Commission AQF-5 arborist to plot TPZs before any driveway or basement ideas. Hornsby’s policy shows what won’t justify removal—design around that.

• Concept options (7 days) → a) “One-house look” duplex/KDR; b) Corner-lot subdivision massing (Torrens vs strata).

• DA pack → Heritage Impact Statement + Arborist report; landscape and deep-soil plan. (CDC only where heritage/tree constraints do not apply.)

“Beecroft buyers still want weatherboard warmth and leafy setbacks. Your duplex should feel like a single manor split down the middle.” — AUD Heritage Lead

Ready to Move from Idea to Action?

Address-level clarity in days—not months.

• Get your 48-hour Feasibility & Budget Card with our KDR Cost Calculator:
  👉 https://au-design.org/e_kdr-cost-calculator.html

• Have questions or want a tailored consult? Make an enquiry:
  👉 https://audesign-property.com/contact-us

FAQ

1. Is a duplex allowed in Beecroft?
   Yes—in R2 zones dual occupancies are now permitted state-wide; within LMR areas the state policy supplies non-refusal standards (450 m² lot, 12 m frontage, etc.). Heritage items/areas and hazards can still push you to DA with reports.

2. Do I really need an arborist?
   If trees are present (they almost always are), yes. Hornsby’s policy explains many common reasons won’t justify removal; getting TPZs mapped early avoids costly redesign.

3. I’m on the Parramatta side—what’s different?
   Parramatta confirms LMR thresholds now apply in its mapped LMR areas, lowering the dual-occ minimum to 450 m²/12 m compared with the older LEP rule (600 m²/15 m).
